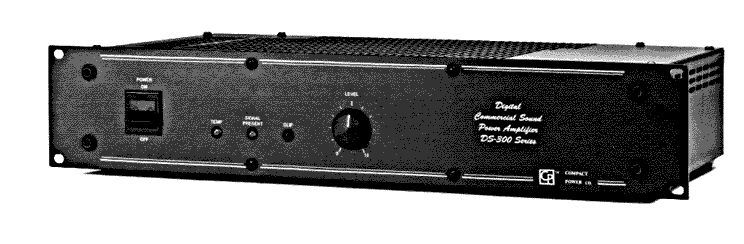

DS-300
True Commercial Sound Digital Amplifier
![]()
- Transformer isolated input & output
- Full 300 watt mono output into 25V, 70V, 100V, 2, 8, or 16 ohm taps
- Subsonic & ultrasonic filters
- Exclusive SAT-SENSE limiter is field set to
prevent distribution transformer saturation or speaker over-excursion- Adjustable maximum output power 75-300 WATTS
- Fully adverse load & short circuit protected
- Soft start, regulated D.C. power supply
- 85% efficient PWM-MOSFET Digital Power Amplifier
- Convection cooled, no noisy fans, small size, light weight
- Circuit breaker & varistor protection
- LED status indicators
- 2-year warranty, stock delivery, foreign power units available
- Time proven reliability
- UL safety approval
DESCRIPTION:
The Compact Power DS-300 Series Digital Power Amplifier has been designed from the ground up to be a true commercial sound amplifier. All the desirable features that you, the sound contractor, have asked for have been incorporated and are supplied standard, at no extra cost. This is not a modified Pro-Sound amp attempting to address the Commercial Sound market with minor modifications and a long list of expensive options that you wish it had in the first place. The DS-300 is a very specific product designed for a very specific marketplace.
OUALITY AND LONG TERM RELIABILITY
is at the top of every contractor's list of priorities. Consequently, Compact Power investigated virtually every fault mode the can occur in a commercial sound installation and designed the DS-300 to protect itself against them. The exclusive HSDS system developed is a totally novel approach to typical problems that arise and results in superb reliability. Common complaints like "the technician didn't install it right", "the inexperienced sound system operator drove it too hard" or "the customer made unauthorized system modifications" will never cause amplifier failures again. This extensive protection is designed into the output stage so that it can operate safely and continuously into any load impedance, including a dead short, without damage, overtemp or shutdown. This completely eliminates damage from improper installations and insures that the customer will always get some useful output, regardless of the load. All the above facts coupled with input and output line transient protection, user resetable circuit breaker (no fuses to replace) and convection cooling (no troublesome fans or filters to clean) insures that a long term installation stays that way with a minimum of contractor call-backs.Do our competitors encourage you to install their amps in your most demanding and abusive applications? We do!
EASE OF INSTALLATION
Is a high priority item to contractors and is assured with the following DS-300 fully transformer isolated and balanced input and output, subsonic and ultrasonic filters, exclusive SAT-SENSE current limiter adjustment, exclusive HSDS circuit allows safe operation into any load, soft-start (no tripped circuit breakers) regulated power supply, wide power line voltage range, low power consumption, low power dissipation (85% efficient), convection cooled, small size, light weight, and easily installed in any position. All these advantagesassure the contractor he'll be in and out of an installation in a minimum amount of timeand we all know time is money!
WE INVITE YOU TO COMPARE
Value, getting the most useable features for your buck, is important to contractors to survive in a competitive world and still retain respectable profit margins. We invite you to compare our amplifier to anything else available in the sound contracting market and see if you don't agree that the Compact Power DS-300 offers by far the best value available today. No Glitter - No Gimmicks - just Best Value!
Let Compact Power show you how our digital amplifier technology can help you in your sound contracting business.
Call or Email for detailed specifications.
